Generate CSR and Private Key

CSR Format Guidelines​

Before you begin generating your CSR (Certificate Signing Request), please ensure that you follow these format guidelines to adhere to PayNet's standards:

  1. Country Name (C): MY

  2. Organization Name (O): Applicant's organization name. For example:

    XYZ Sdn. Bhd.

  3. Organizational Unit (OU): Indicate the name of the product or service. For example:

    • PayNet FPX
    • PayNet RPP

  4. Common Name (CN): Assign the appropriate value based on your application type:

    • For Banks: BIC Code
    • For Merchants: Merchant ID
    • For FPX Merchants: Exchange ID

  5. Email Address (E): Applicant's email address

Generate on Windows Platform​

Generation of Private Key and CSR at Merchant’s/TPA’s End.

  • Generation of Private Key
openssl genrsa -out <file_name_pvt>.key 2048
info

Note: EX00000298 is used for the filename during key generation for illustration purpose only.

Example banner

  • Generation of CSR
openssl req -out <file_name_csr>.csr -key <file_name_key>.key -new -sha256

Example banner

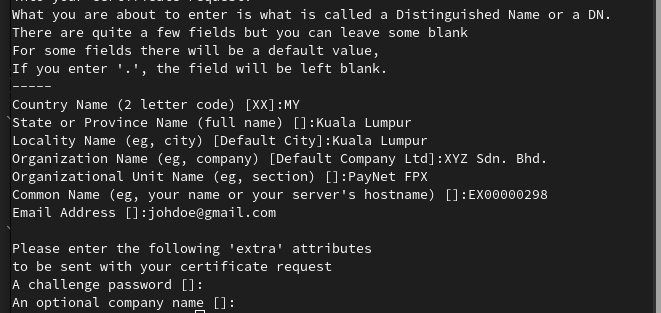

  • Information that will be incorporated into the certificate request. Please leave a challenge password and an optional company name blank.

Example banner

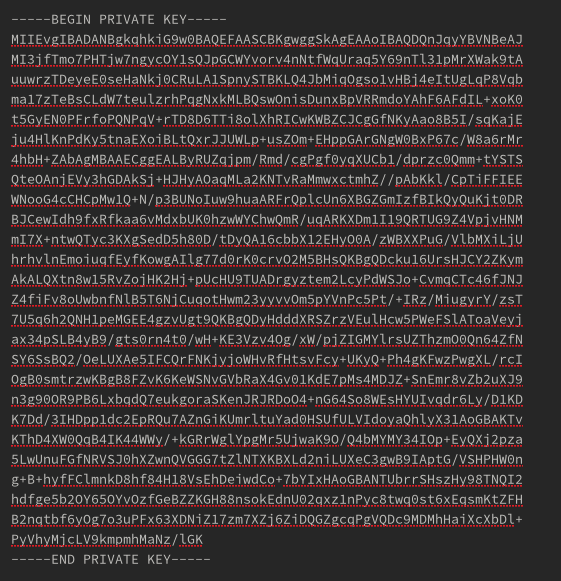

  • Sample of Private Key

Example banner

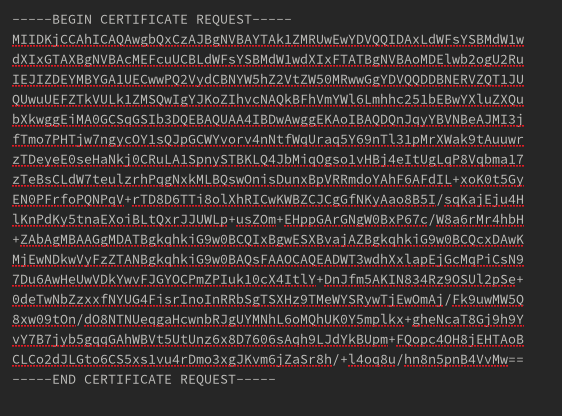

  • Sample of CSR File

Example banner

Generate on Linux Platform​

Generation of Private Key and CSR at Merchant’s/TPA’s End.

  • Generation of Private Key
openssl genrsa -out <file_name_key>.key 2048
info

Note: EX00000298 file name is use for illustration purpose only.

Example banner

  • Generation of CSR
openssl req -out <file_name_csr>.csr -key <file_name_key>.key -new -sha256

Example banner

  • Information that will be incorporated into the certificate request. Please leave a challenge password and an optional company name blank.

Example banner

  • Sample of Private Key

Example banner

  • Sample of CSR File

Example banner
