Enquire Payment Status

Retrieves the status of the payment that has previously been created via checkout. Parse in the unique checkoutId and PayNet will return the corresponding payment status.

info

v1.0.0
This version endpoint will still be available to support for existing participants.

v2.0.0
This version is designed to provide more granular control and future-proofing when new payment types introduced.

What’s new:

1.  Introduce paymentMethod as part of request URL:
   • 01 - One Time Payment
   • 02 - Saved Payment Method
2.  Support AutoDebit Enquiry.
3.  Optimise response message by removing messageId.

info

Acquirer should perform retrieve payment status after 60 mins before updating the final status for the transaction.

v1.0.0

Process Flow

Step	Sender	Receiver	Process
1	Acquirer	API Gateway	Acquirer initiates an enquiry via checkoutId for the status of the transaction.
2	API Gateway	Acquirer	API Gateway will locate the transaction status and response back to acquirer.

Request

GET /v1/bw/rtp?checkoutId=a7e2ed2a-b088-4495-8cf4-88da08f644f2

Attention

This API has a rate limit, therefore can only be called once every 30 seconds.

checkoutId	String	Max length: 36		Required
The unique external identifier (uuid v4) provided by the acquirer to PayNet when initiating a payment intent.

Response

Data Object
messageId	String	Max length: 35		Required
Unique message identification from RPP. This can be used to reconcile with RPP BackOffice or Reports.
endToEndId	String	Max length: 35		Required
Unique message identification from RPP. This can be used to reconcile with RPP BackOffice or Reports.
transactionStatus	String	Max length: 35		Required
Transaction status: RECEIVED – Pending CLEARED – Successful Credit REJECTED – Rejection from Debiting Agent PENDAUTH – Pending authorization from Debiting Agent
issuer	String	Max length: 100		Required
Name of payer’s issuing bank / wallet.
paymentMethod	String	Max length: 2		Required
Payer selected payment method: 01 - DuitNow Online Banking / Wallets
End Data Object
message	String	Max length: 1024		Required
Please refer to the list of reason codes.

Sample Response:

{
  "data": {
    "messageId": "20240119M0000201864OBW00000004",
    "endToEndId": "20240119M0000201861OBW00000004",
    "transactionStatus": "RECEIVED",
    "issuer": "Affin Bank",
    "paymentMethod": "01"
  },
  "message": "U000"
}

v2.0.0 - Latest

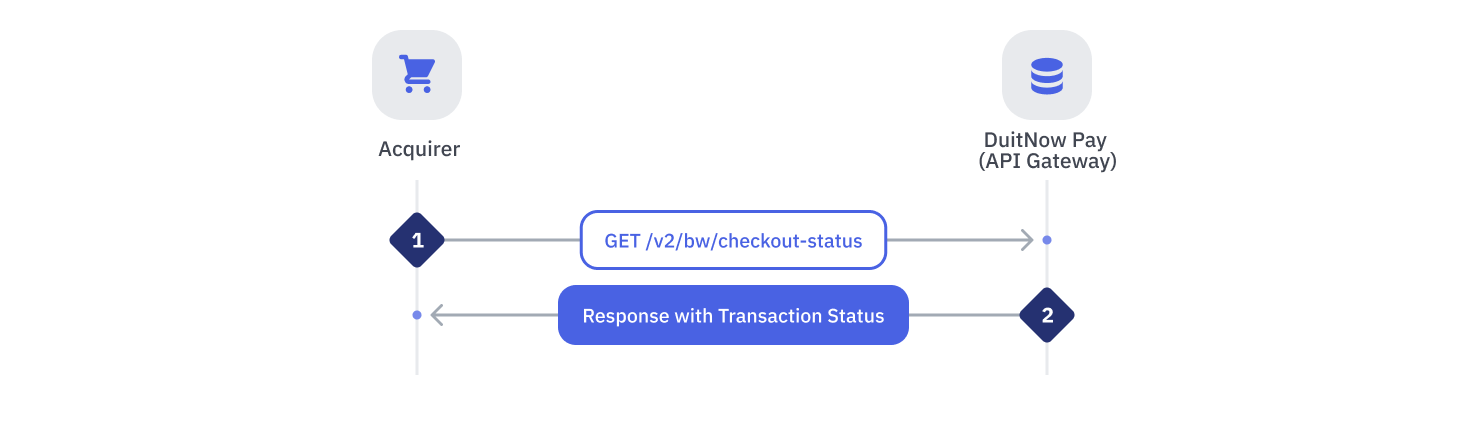

Process Flow

Step	Sender	Receiver	Process
1	Acquirer	API Gateway	Acquirer initiates an enquiry via checkoutId for the status of the transaction.
2	API Gateway	Acquirer	API Gateway will locate the transaction status and response back to acquirer.

Request

GET /v2/bw/checkout-status?paymentMethod=01&checkoutId=a7e2ed2a-b088-4495-8cf4-88da08f644f2

Attention

This API has a rate limit, therefore can only be called once every 30 seconds for each transaction.

paymentMethod	String	Max length: 2		Required
The payment method of the transaction/ payment intent. 01 - One-time payment 02 - Save payment method
checkoutId	String	Max length: 36		Required
The unique external identifier (uuid v4) provided by the acquirer to PayNet when initiating a payment intent.

Response

Data Object
endToEndId	String	Max length: 35		Required
Unique message identification from RPP. This can be used to reconcile with RPP BackOffice or Reports.
transactionStatus	String	Max length: 35		Required
Transaction status: RECEIVED – Pending CLEARED – Successful Credit REJECTED – Rejection from Debiting Agent PENDAUTH – Pending authorization from Debiting Agent
issuer	String	Max length: 100		Required
Name of payer’s issuing bank / wallet.
paymentMethod	String	Max length: 2		Required
Payer selected payment method: 01 - DuitNow Online Banking / Wallets 02 - Save payment method
End Data Object
message	String	Max length: 1024		Required
Refer to the reason codes in the appendix.

Sample Response:

{
  "data": {
    "endToEndId": "20240119M0000201861OBW00000004",
    "transactionStatus": "RECEIVED",
    "issuer": "Affin Bank",
    "paymentMethod": "01"
  },
  "message": "U000"
}
