IBFT4 – Beneficiary

This guide provides step-by-step instructions for Beneficiary institutions to test IBFT4 (Interbank Fund Transfer Scenario 4) transactions using PayNet-provided terminals and the Developer Portal.

IBFT4 simulates instant transfer scenarios where customers transfer funds to accounts at your institution using the SAN network infrastructure.

Who should use this: Banks, Non-Banks, TPA, EMI, Digital Banks receiving funds as Beneficiary

Prerequisites​

ItemProvider
PayNet TerminalPayNet
Login CredentialsPayNet
Test Card (BIN 9000 09XX)PayNet
Beneficiary Account NumberYour Organization
Developer Portal AccessPayNet
FIIDYour Organization

Step 1: Execute Transaction on PayNet Terminal​

1.1 Terminal Login​

  1. Open PayNet ATM application
test suite
  1. Enter Email and Password provided by PayNet
test suite
  1. Click Login
test suite

1.2 Interbank Fund Transfer Scenario 4 (IBFT4) Transaction​

  1. Click “Fund Transfer”
test suite
  1. Select Account Type to Transfer From
    • Saving
    • Current
Important

Match this selection with your test case title

test suite

  1. Select transfer type → Transfer to Other Bank (IBFT4 requirement)

    test suite
  1. Select Beneficiary Bank
    • Scroll through the bank list
    • Select your own bank (from your organization)
    • Click Confirm
test suite

  • Click Confirm

    test suite
  1. Select Account Type to Transfer To
    • Review your test case details
    • Select according to test case specification
Critical

Incorrect selection will cause execution failure.

test suite
  1. Enter Beneficiary Account Number
    • Use account number from your organization
    • Click OK
test suite
  1. Enter Transfer Amount
    • Click Charge
test suite

  1. Card Authentication

    • Insert PayNet-provided card (BIN 9000 09XX XXXX XXXX)
    test suite
    • Enter PIN
test suite

  • Click OK

    test suite

  1. Confirm transfer details:

    • Beneficiary Name
    • Beneficiary Bank
    • Account Number
    • Amount
    • Click CONFIRM
    test suite

  2. Retrieve Receipt with RRN

test suite
Important – Two RRNs Required
  • Beneficiary Inquiry RRN (Step 1) → Obtained from your own system
  • Fund Transfer RRN (Step 2) → Obtained from terminal receipt

📌 Key Transaction Details​

StepFieldNote
Account FromSaving / CurrentMust match test case
Transfer TypeTransfer to Other BankIBFT4 requirement
Beneficiary BankYour own bankFrom your organization
Account ToPer test caseCheck test case details
Beneficiary AccountYour organizationFrom your institution
CardPayNet provided (BIN 9000 09XX)From PayNet

Step 2: Submit Test Case in Developer Portal​

2.1 Navigate to Test Case​

  1. Return to PayNet Developer Portal
  2. Open SAN Instant Transfer test suite
test suite

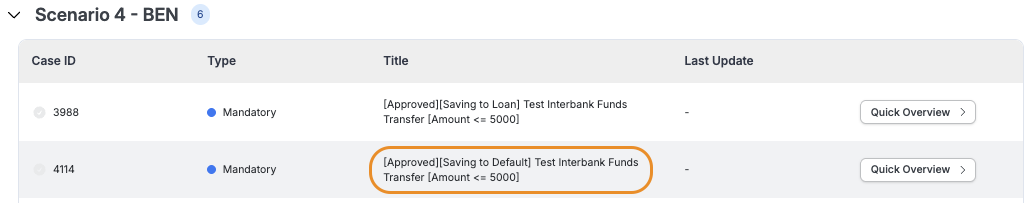

  1. Scroll to Scenario 4 – BEN
  2. Click the relevant test case title
test suite

2.2 Submit RRNs (Two-Step Validation)​

You will see 2 steps in the Test Execution tab.

test suite

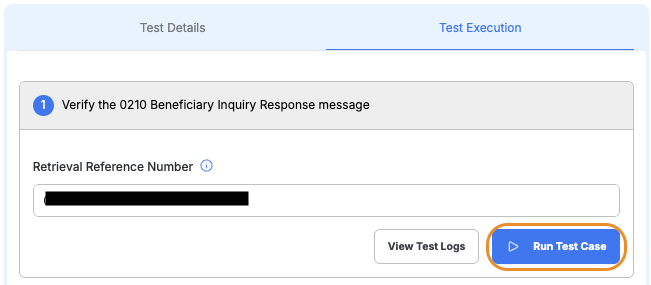

Step 1 – Submit Beneficiary Inquiry RRN​

  1. Enter Beneficiary Inquiry RRN from your own system in Step 1 field
  2. Click Run Test Case for Step 1
test suite

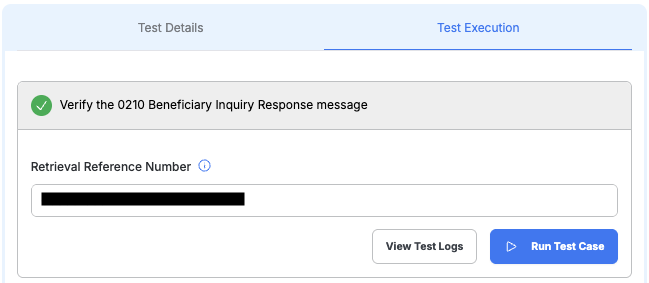

  1. Wait for validation
test suite
Critical

You must complete and pass Step 1 first, otherwise Step 2 cannot be run.

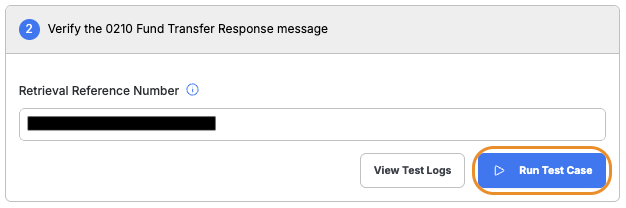

Step 2 – Submit Fund Transfer RRN​

  1. After Step 1 shows Passed
  2. Enter Fund Transfer RRN from terminal receipt in Step 2 field
  3. Click Run Test Case for Step 2
test suite
  1. Wait for validation
test suite
Note

This is a multi-step validation.
Step 2 is only enabled after Step 1 passes successfully.

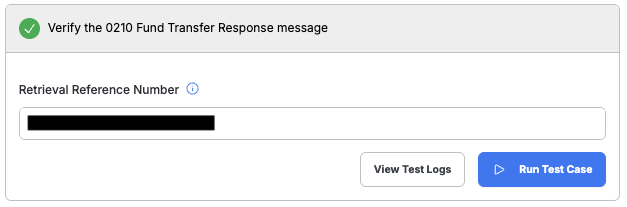

2.3 Review Results​

  • Passed: Status badge displays a green Passed label

    test suite

  • Failed: Click View Test Logs to identify the issue and error details

    test suite

Step 3: Complete All Test Cases​

Completion Checklist​

  • Repeat Steps 1–2 for each test case in Scenario 4 – BEN
  • Complete all account type combinations specified in test cases
  • Ensure all test cases show Passed
  • Review test logs for any failures
